+47
-
Sleeps 6
-
5 Slides
-
Front KitchenOutdoor Kitchen
-
42ft Long
-
13,459 lbs

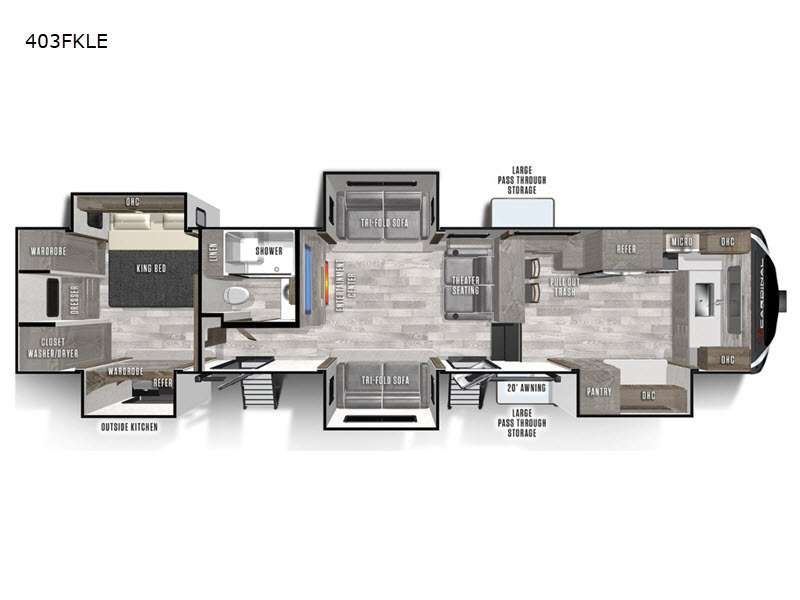

403FKLE Floorplan
Specifications
| Sleeps | 6 | Slides | 5 |
| Length | 42 ft 1 in | Ext Width | 8 ft |
| Ext Height | 13 ft 3 in | Hitch Weight | 2265 lbs |
| GVWR | 15500 lbs | Dry Weight | 13459 lbs |
| Cargo Capacity | 2041 lbs | Fresh Water Capacity | 60 gals |
| Grey Water Capacity | 76 gals | Black Water Capacity | 38 gals |
| Tire Size | 16" | Furnace BTU | 35000 btu |
| Available Beds | King | Refrigerator Size | 17 cu ft |
| Shower Size | 48" x 30" | Number of Awnings | 1 |
| Axle Weight | 7000 lbs | LP Tank Capacity | 30 lbs |
| Water Heater Capacity | 10 gal | Water Heater Type | Quick Recovery Gas/Electric DSI |
| AC BTU | 15000 btu | Awning Info | 20' Power with LED Lights |
| Axle Count | 2 | Washer/Dryer Available | Yes |
| Number of LP Tanks | 2 | Shower Type | Shower w/Seat |
| VIN | 5301 |
Description
Forest River Cardinal Limited fifth wheel 403FKLE highlights:
- Huge Front Kitchen
- Breakfast Bar
- Outdoor Kitchen
- Opposing Tri-Fold Sofas
- Rear Private Bedroom
- Large Pass-Through Storage
This Cardinal Limited fifth wheel is a gem! It has an amazing front kitchen that is quite spacious and ready for any top-notch chef. There is a large pantry to store your cookies and a 17-cubic foot refrigerator to store your coffee creamer. You'll have a 30" over-the-range microwave to use when you want to make something fast, and if you want to take the time to prepare dinner, you can use the 22" oven/range. A breakfast bar with chairs overlooks the main living area so that you can eat your cereal while you watch the entertainment center. If you want to get more comfortable while you watch, just head to the theater seating or one of the two tri-fold sofas. Secluded in the back of this unit is a private bedroom that has a king-size bed, two wardrobes, and a dresser with three large drawers. There is also a closet that has been prepped for the optional washer/dryer.
Say goodbye to the boring and mundane, and say hello to fresh and exciting with the Forest River Cardinal Limited fifth wheel! The LCI Next Generation frame technology has a Z-frame design, and it is also powder-coated. There are dual roof vents for a breathable attic, an Underbelly Armor for rigid protection from road debris, 12V tank heat pads with underbelly forced-air heat and radiant foil insulation, and a full pass-through front storage with forced-air heat. There are some features that are quite easy to set up, like the power awning with LED light strip, the exterior heated water and convenience center, the battery disconnect located in the main storage compartment, the external LP quick connect, and the hitch light. You will also be impressed with the modern features found on the Cardinal Limited. There is a Winegard 360+ (AM/FM TV antenna with 4G and Wi-Fi extender prep), and each unit has been prepped for solar panels, a rear camera, and a stackable washer/dryer.
Colaw RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @877-548-2125 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs, specs, & features may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
Features
Standard Features (2022)
Construction
- LCI Next Generation Frame Technology, “Z” frame design & powder coated
- “Z” frame design using 12” I-beam with 10” I-beam drop (Limited Package)
- Sidewalls: 2” Vacuum Bonded, aluminum framed with high density block foam insulation (Extended Seasons PKG)
- Roof: 5” Arched roof rafters 14” on center with two layers of batten insulation and radiant foil (Extended Seasons PKG)
- Dual roof vents for breathable attic (Extended Seasons PKG)
- Dicor PVC roof membrane with lifetime warranty
- Main Floors: 5/8” tongue & groove plywood floors with batten insulation and radiant foil (Essentials PKG)
- Bath/Bedroom Floors: Welded aluminum frame with 5/8” tongue & groove plywood floors
- Slide Box: 2” Laminated aluminum framed sidewalls & roof with 1” wood flooring
- 2” Laminated aluminum framed front wall anchors sidewalls for added strength
- EGS backing strips to anchor interior cabinets
- Seamless roto-cast holding tanks
- Underbelly Armor provides rigid road debris protection and comes in 4’ sections for easy accessibility to underbelly
- 12V tank heat pads with underbelly forced air heat and radiant foil insulation (Extended Seasons PKG)
- One piece molded front cap with batten insulation and radiant foil
- Full Pass Through Front Storage w/ Forced Air Heat (Extended Seasons PKG)
Easy Set-Up Features
- Main 12V power awning with L.E.D. light strip
- Second 12V power awning with L.E.D. light strip (N/A 379FLLE, 403FKLE)
- Heated exterior water and convenience center: (Outside shower w/ quick connect hose, black tank flush, easy winterization kit, water heater bypass, power tank fill, Cable and Sat. Coax hookups & enclosed low point drains)
- Battery disconnect located in main storage compartment
- External LP quick connect
- Hitch Light
Exterior Features
- Premium bright white fiberglass exterior
- Front Cap: Painted high gloss gel coat fiberglass with amber L.E.D. running lights
- Rear Roof ladder
- XL folding entry assist handle
- Marine grade exterior speakers
- solar prep (Essentials Camping PKG)
- Enormous drop-frame pass-through storage compartment with forced air heat & L.E.D. strip lighting
- Slam Latch compartment doors
- LCI Solid Step (Essentials Camping PKG)
- Extra large 32” X 76” entry door with friction hinge (Essentials PKG)
- L.E.D. light package: Entry step, Goose neck, Front cap & Entry door
- Two vented battery prep boxes
- Waste Hose storage compartment
- Winegard 360+ (AM/FM, TV Antenna w/ 4G & Wi-Fi extender prep) (Essentials Camping PKG)
- 1.5” Aluminum belt rail with caps (no exposed screws)
- Dual 30 Ib. propane bottles with auto switch over
- 2" Accessory Receiver (Essentials PKG)
- Auto Leveling 6 Points
Towing Features
- Extended Turn front cap with hitch vision L.E.D. light strip
- 21K Rhino pin box (Cardinal Limited PKG)
- Prepped for rear camera (Essentials Camping PKG)
- G – Range tires (Limited PKG)
- 7000 Ib. easy lube axles (Essentials Camping PKG)
- Undermount spare tire & carrier
- L.E.D. tail lights with back-up lights
- 16” 8-lug aluminum wheels
Living Area Features
- Thomas Payne Collection theatre seats (Essentials Camping PKG)
- Thomas Payne Collection tri fold hide-a-bed sofa
- Decorative hard wood slide room fascia
- 15K BTU main A/C and Bedroom A/C (Extended Seasons PKG)
- 35K BTU furnace (Extended Seasons PKG)
- 60 Amp converter with Charge Wizard
- Electric Fireplace (Extended Seasons PKG)
- Black metal exit assist handle
- End Tables with 110v outlets & 2.0 USB ports
- Carbon monoxide detector
- LP leak detector
- Ceiling Fan (cardinal Limited PKG)
- Night Roller Shades (Limited PKG)
Kitchen Features
- 17 cu. ft. Refrigerator
- 2-in-1 22” Oven/Range with L.E.D. knob indicators (Cardinal Limited PKG)
- Solid surface counter tops (Essentials Camping PKG)
- Residential contemporary cabinet hardware and accents
- Single Bowl farm style black stainless-steel sink (Cardinal Limited PKG)
- High rise, pull out, bullet kitchen faucet
- Residential size pantry (Most Models)
- Hidden hinges (Cardinal Limited PKG)
- Power vent fan
- 30” over-the-range microwave vented to exterior
- Decorative glass cabinet doors
- Free Standing dinette and (4) chairs with flip up storage/ Optional Booth dinette (Cardinal Limited PKG)
- Decorative Lighting above island
- Full extension drawer guides
Bedroom Features
- Renovo Sleep systems mattress
- True walk in closet design (Limited PKG)
- Prepped for stackable washer & dryer with separate 20 AMP circuits (Essentials PKG)
- Dresser with three large drawers
- Under bed storage
- Two 110v bed side power outlets
- 72x80 King Beds (Essentials PKG)
- Decorative L.E.D. lit headboard
- Two reading lights with individual controls
Bathroom Features
- 48” x 30” shower with integrated seat
- 3 sliding glass shower door
- Shower skylight
- Heat & A/C duct
- Porcelain toilet with foot flush
- Power roof vent
- 10 Gallon DSI gas/electric water heater (Extended Seasons PKG)
- Towel bar
Options
- Suburban Gas Griddle w/ mounting bracket (Models without Outside Kitchen)
- 18 cu. Ft. Norcold 4 door gas/electric refrigerator
- Slide out awnings (3,4,5)
- Winegard Wi-fi / 4G router
Cardinal Limited Package
- Single Bowl, Stainless Steel Sink
- 22" 2-In-1 Range and Oven
- Hidden Hinge Cabinetry
- Z-Frame Construction
- Ground Control 3.0 Auto Leveling
- Hard Wood Slide Fascia
- Front, Walk-In Closet
- Ceiling Fan
- Rhino Pin Box
- Night Roller Shades
- 4, Residential Dinette Chairs w/ Storage
- G-Rated Tires
Limited Extended Seasons Camping Package
- 12V Heat Pads w/ Underbelly Ducted Heat
- 35K BTU Furnace
- 15K BTU Main A/C & Bedroom A/C
- 10 Gallon Gas/Electric Quick Recovery Water Heater
- Exterior Ventilated Attic for Breathable Roof
- Electric Fireplace Living Room
- Full Pass Thru Front Storage w/ Forced Air Heat
- Sidewalls: 2" High Density Block Foam Insulation (R-9)
- Roof: Fiberglass and Foil Insulation (ER38)
- Floor: Fiberglass and Foil Insulation (ER38)
Limited Essentials Package
- Vacuum Bonded, Welded Aluminum Structure
- 5/8" Tongue and Groove Plywood Floor
- Solid Surface Kitchen Countertops
- Stackable Washer/Dryer Prep
- Winegard 360+ (AM/FM, TV Antenna w/ 4G & Wi-Fi Extender Prep)
- LCI Solid Step
- 7K Axles
- Rear Camera Prep
- Solar Panel Prep
- Dual Awnings w/ LED Light Strip (Most Models)
- 2" Accessory Receiver
- 32" Friction Hinged Entry Door
- 72X80 King Bed w/ 110 Outlets on Sides
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
