Floorplan - 2017 Winnebago Vista 31BE
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+49-
Sleeps 8
-
1 Slides
-
Bunk Over CabBunkhouse
-
32ft Long
-
Infinity, Legend, Rockslide, Stardust

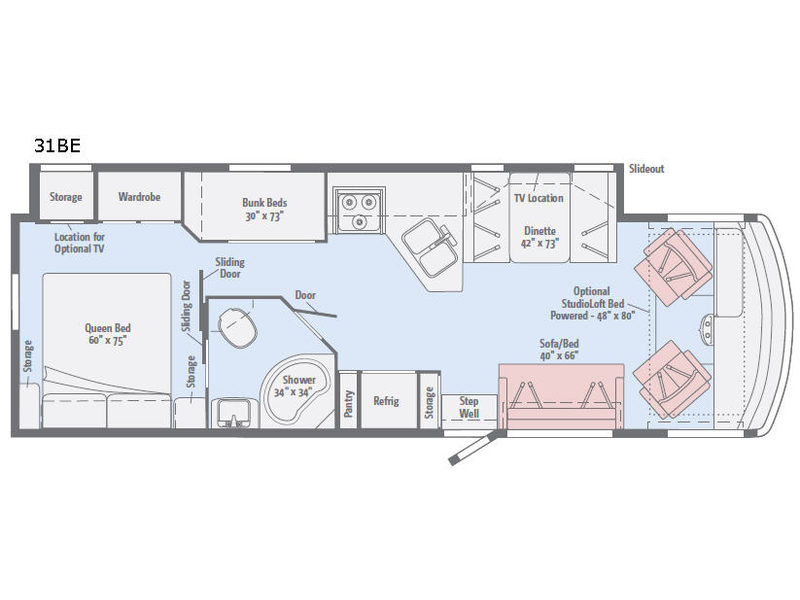

31BE Floorplan
Specifications
| Sleeps | 8 | Slides | 1 |
| Length | 32 ft 3 in | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 2 in | Int Height | 6 ft 8 in |
| Interior Color | Infinity, Legend, Rockslide, Stardust | Exterior Color | Solar Flare, Indigo |
| Hitch Weight | 5000 lbs | GVWR | 18000 lbs |
| Fresh Water Capacity | 70 gals | Grey Water Capacity | 59 gals |
| Black Water Capacity | 43 gals | Furnace BTU | 30000 btu |
| Generator | Cummins Onan MicroQuiet 4000 watt | Fuel Type | Gasoline |
| Miles | 36186 | Engine | Triton V10 |
| Chassis | Ford F53 | Fuel Capacity | 80 gals |
| Wheelbase | 208 in | Number Of Bunks | 2 |
| Available Beds | Queen | Refrigerator Type | Large Double Door with Freezer |
| Cooktop Burners | 3 | Shower Size | 34" x 34" |
| Number of Awnings | 1 | Axle Weight Front | 7000 lbs |
| Axle Weight Rear | 12000 lbs | LP Tank Capacity | 18 |
| Water Heater Capacity | 6 gal | AC BTU | 14800 btu |
| Basement Storage | 147 cu. ft. | TV Info | 39" HDTV |
| Awning Info | 19' Powered with LED Lights | Gross Combined Weight | 23000 lbs |
| Shower Type | Radius | VIN | 1F65F5DY1H0A02601 |
Description
Step inside along the curb side of the coach and find a sofa/bed to your right that includes seat belts for safe traveling. There is an optional StudioLoft bed above the cab area that you can add giving you an additional 48" x 80" sleeping space for one. Across from the sofa/bed you will find added seating for meals at the 42" x 73" dinette with overhead cabinets above including a location for a 39" HDTV to enjoy. This too can become sleeping space at night when needed with the table folded down.
The full driver's side slide continues after the booth dinette with an angled counter and double sink, a three burner range, and plenty of overhead cabinets for your dishes and things. Beyond the kitchen still within this full wall slide find a set of bunk beds for the kids to enjoy, and a wardrobe, plus a storage cabinet that ends in the rear master bedroom. Here you will enjoy another location for an optional 24" HDTV.
Along the curb side as you step in you will find a handy storage cabinet on your left. There is also a refrigerator for your perishables, and a pantry for dry and canned goods.
You will enjoy a complete bath with corner shower, single sink, and a corner angled toilet with storage above as well.
Just beyond the bath you will find a sliding door that leads into the rear master bedroom featuring a queen size bed. There are storage cabinets on either side, plus overhead storage as well. The wardrobe in the full wall slide opposite the foot of the bed makes clothing storage easy, plus so much more!
Colaw RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @877-548-2125 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs, specs, & features may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
Features
- Tailgate Package refrigerator, 3-drawer cabinet, LED lights, portable grill w/folding stand, Quick-Connect LP hose, stainless steel sink, ice chest with drain plug, silverware tray, wall-mounted bottle opener, garbage bag holder, paper towel holder (29VE, requires ordering the 1000-watt inverter option)
- 3-valve Triton® V10 engine SEFI, TorqShift™ 6-speed automatic transmission w/tow/haul, 175-amp. alternator
- Hydraulic brakes w/ABS
- Trailer Hitch6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight
- 7-pin connector
- Stainless steel wheel liners
- Automatic hydraulic leveling jacks
Cab Conveniences
- Radio/Rearview Monitor System DVD receiver with 6.2" LCD color touch screen, handheld remote, iPod®/MP3 input, rear color camera, Bluetooth®, SiriusXM®-ready, Spotify®, AppRadio One
- Cab seats adjustable armrests, fixed lumbar support, and multi-adjustable slide/recline/swivel
- 3-point seat belts
- Chassis/house battery radio power switch
- Power steering w/tilt wheel
- Power mirrors w/defrost
- Powered MCD blackout front shade (NA 26HE)
- Front wraparound curtain (26HE)
- Cruise control
- Map light
- Sunvisors (26HE)
- Dash workstation w/USB and 12-volt powerpoint
- Motor cover w/integrated snack tray
Interior
- 32" HDTV (26HE, 31KE)
- 39" HDTV (31BE)
- 40" HDTV (29VE, 32YE)
- Amplified digital TV antenna system
- Satellite system ready (32YE)
- MCD blackout roller shades
- OnePlace® systems monitor
- Roof vent (lounge) (NA 32YE)
- Tinted windows
- LED lights
- Vinyl flooring throughout
- Assist bar
- StudioLoft™ (powered w/ladder)
Galley
- Laminate countertops w/decorative backsplash
- 2-door refrigerator/freezer (NA 31BE, 32YE)
- Large, 2-door refrigerator/freezer (31BE, 32YE)
- Microwave oven w/touch controls
- 3-burner range w/oven
- Stainless steel double sink
- Powered roof vent (32YE)
Optional Galley Equipment
- Large 4-door refrigerator/freezer w/icemaker, cold water purification system (32YE)
Bath
- Laminate counter-top w/decorative backsplash
- Flexible showerhead
- Textured glass shower door
- Skylight
- Toilet w/foot pedal
- Powered roof vent (NA 32YE)
- Powered roof ventilator fan (32YE)
- Towel bar(s)
- Towel ring(s)
- Robe hook(s)
- Tissue holder
Bedroom
- King bed w/foam mattress and storage below (32YE)
- Queen bed w/foam mattress and storage below (32YE)
- Bedspread
- Headboard
- Bunk beds w/foam mattresses, mattress covers, and privacy curtain (31BE)
- Powered ventilator fan (29VE, 31BE)
Optional Bedroom Equipment
- 2 DVD players w/10.1" LCD monitors and headphones (31BE bunk beds)
- 24" HDTV (29VE, 31BE, 32YE)
Exterior
- Premium high-gloss sidewall skin
- Automatic entrance door steps
- Powered patio awning
- Front mud flaps
- Porch light w/interior switch
- Incandescent lighted storage compartments (in select compartments)
Optional Exterior Equipment
- Entertainment center 32" HDTV w/remote and speakers (31BE, 32YE)
- Entertainment center 40" HDTV w/remote and speakers (29VE)
Heating & Cooling System
- 14,800 BTU air conditioner w/ChillGrille™
- 30,000 BTU low-profile furnace (NA 32YE)
- 35,000 BTU low-profile furnace (32YE)
Electrical System
- AC/DC load center, 45-amp. converter/charger
- 30-amp. power cord
- 4,000-watt Cummins Onan® MicroQuiet™ gas generator
- 2 deep-cycle Marine/RV Group 24 batteries
- Battery disconnect system (coach)
- Automatic dual-battery charge control
- Auxiliary start circuit
- AC duplex receptacle
- Cable TV input
- Exterior antenna jack
- DC receptacles
- AC/DC inverter w/ remote panel and exterior antenna jack. Only available w/ optional Tailgate Package (29VE)
Plumbing System
- Service Center colored labels, pressurized city water hookup w/diverter valve, drainage valves, 10' sewer hose
- 6-gallon LP water heater w/electronic ignition
- Heated holding tank compartment
- Permanent-mount LP tank w/gauge
- On-demand water pump
- TrueLevel™ holding tank monitoring system
- Winterization Package water heater bypass valve and siphon tube
- LPG accessory connection (patio) (29VE)
Safety
- Child seat tether anchor (forward facing dinette seat)
- LP, smoke, and carbon monoxide detectors
- 10 BC fire extinguisher
- Ground fault interrupter
- High-mount brake lamp
Warranty
- 12-month/15,000-mile basic limited warranty
- 36-month/36,000-mile limited warranty on structure
- 10-year limited parts-and-labor warranty on roof skin
- See dealer for complete warranty information
See us for a complete list of features, options & warranty information!
All standard features and specifications are subject to change.
